2198-D057-ERS3
Learn more
Original Packaging
Surplus stock in its original box. Units may have been briefly powered on for verification purposes only.
- No visible signs of wear, use, or physical damage.
- Arrives in the original manufacturer packaging — factory seal may be absent and outer box may show minor shelf wear or labeling.
- All standard hardware and accessories included unless otherwise noted.
- Documentation and instructions not guaranteed.
- Date codes or product series may differ from current factory inventory.
- Packaging language and country of origin may vary.
- Backed by Marci Hardware's 1-year warranty. Original manufacturer warranty does not apply.
Marci Hardware Packaging
Surplus stock repacked and shipped in Marci Hardware-branded packaging. Units may have been briefly powered on for verification purposes only.
- No visible signs of wear, use, or physical damage.
- Ships in Marci Hardware-branded or generic aftermarket packaging — original manufacturer box not included.
- Some accessories, hardware, or documentation included with factory-new units may not be present.
- Date codes or product series may differ from current factory inventory.
- Packaging language and country of origin may vary.
- Backed by Marci Hardware's 1-year warranty. Original manufacturer warranty does not apply.
Refurbished
Previously owned or unused units with minor cosmetic imperfections, restored to full working condition.
- May have prior production or field use.
- Each unit is inspected, tested, and cleaned by Marci Hardware before shipment.
- Some accessories, hardware, or documentation included with factory-new units may not be present.
- Backed by Marci Hardware's 1-year warranty. Original manufacturer warranty does not apply.
Overnight Shipping Available
Rush service is available during checkout, or contact us for expedited shipping options:
Phone Number: (832) 343-0718
Email: sales@marcihardware.com
Couldn't load pickup availability
Ships from Stafford, TX

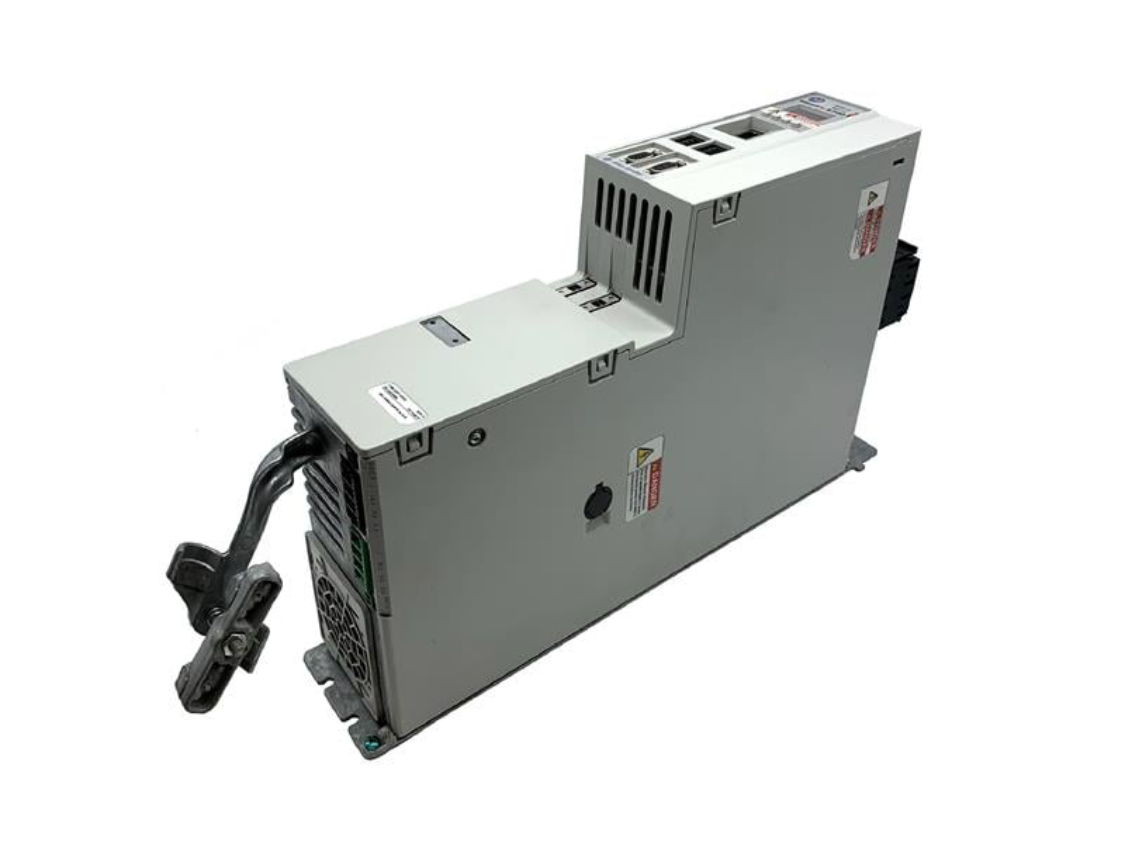

The Allen-Bradley 2198-D057-ERS3 Kinetix 5700 Dual-Axis Servo Drive is a high-performance dual-axis inverter module designed for advanced motion control applications using EtherNet/IP networks. As part of the Kinetix 5700 servo system, this drive delivers precise, synchronized motion control with reduced cabinet footprint and simplified wiring.
The 2198-D057-ERS3 provides 8.0 kW of continuous output power at 240 V and up to 15.9 kW at 480 V, making it suitable for a wide range of medium-to-high power servo applications. It supports continuous output current up to 32.5 A (0-pk) and high peak current capability, enabling fast acceleration, deceleration, and dynamic load handling.
Designed for high-speed performance, the drive features a velocity loop bandwidth of 400 Hz, a current loop bandwidth of 1000 Hz, and a PWM frequency of 4 kHz, ensuring responsive and stable motor control. The dual-axis architecture allows two servo motors to be driven from a single module, reducing panel space, cabling, and system cost.
Technical Details
| Specification | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Category | Servo Drives |
| Product Line | Kinetix 5700 |
| Part Number | 2198-D057-ERS3 |
| Module Type | Dual-Axis Inverter |
| Continuous Output Power (240 V) | 8.0 kW |
| Continuous Output Power (480 V) | 15.9 kW |
| Continuous Output Current (RMS) | 23.0 A |
| Continuous Output Current (0-pk) | 32.5 A |
| Peak Output Current | 81.3 A |
| DC Input Voltage Range | 276…747 V DC |
| DC Input Current | 24.5 A |
| Velocity Loop Bandwidth | 400 Hz |
| Current Loop Bandwidth | 1000 Hz |
| PWM Frequency | 4 kHz |
| Internal Capacitance | 705 µF |
| Jumper Connector | Not Installed (Default) |
| Module Width | 85 mm |
| Weight | 15.06 lbs (6.83 kg) |
| UPC | 885630797861 |
