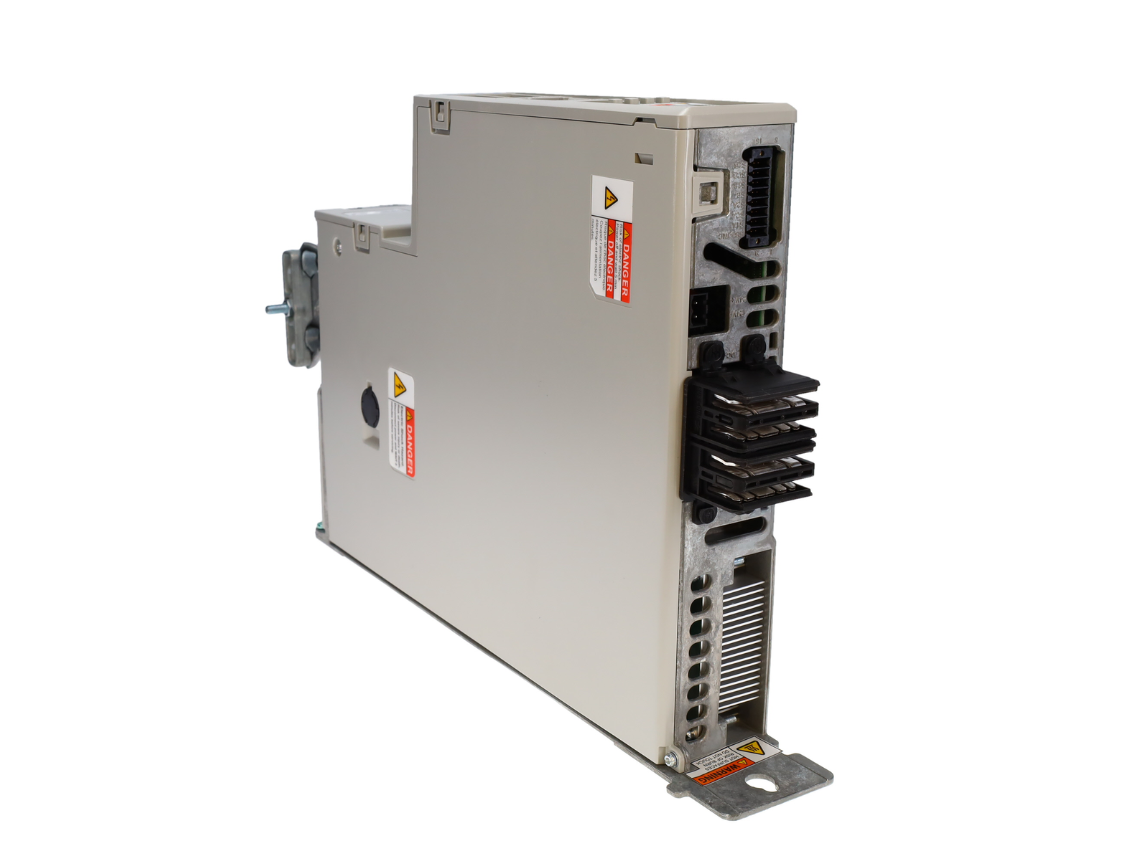

The Allen-Bradley 2198-D032-ERS3 Kinetix 5700 Dual-Axis Servo Drive is a compact, high-performance dual-axis inverter module designed for precise motion control over EtherNet/IP networks. As part of the Kinetix 5700 servo system, this drive enables synchronized control of two servo motors while reducing panel space and wiring complexity.
The 2198-D032-ERS3 delivers 4.5 kW of continuous output power at 240 V and up to 8.9 kW at 480 V, making it ideal for medium-power motion applications. It supports a continuous RMS output current of 13 A and 18.3 A peak (0-pk), allowing fast acceleration and deceleration with stable torque delivery.
For responsive and accurate motion performance, the drive features a 400 Hz velocity loop bandwidth, 1000 Hz current loop bandwidth, and a 4 kHz PWM frequency. Integrated functional safety—including Safe Torque Off (STO) and Timed Safe Stop 1 (SS1)—helps protect personnel while minimizing the need for external safety hardware.
Technical Details
| Specification | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Category | Servo Drives |
| Product Line | Kinetix 5700 |
| Part Number | 2198-D032-ERS3 |
| Module Type | Dual-Axis Inverter |
| Continuous Output Power (240 V) | 4.5 kW |
| Continuous Output Power (480 V) | 8.9 kW |
| Continuous Output Current (RMS) | 13 A |
| Continuous Output Current (0-pk) | 18.3 A |
| Peak Output Current | 45.9 A |
| DC Input Voltage Range | 276…747 V DC |
| DC Input Current | 13.7 A |
| Velocity Loop Bandwidth | 400 Hz |
| Current Loop Bandwidth | 1000 Hz |
| PWM Frequency | 4 kHz |
| Internal Capacitance | 390 µF |
| Integrated Functional Safety | Yes |
| Safety Functions | Safe Torque Off (STO), Timed Safe Stop 1 (SS1) |
| Jumper Connector | Not Installed (Default) |
| Module Width | 55 mm |
| Torque Value | 4.4–5.3 lb-in (0.5–0.6 N·m) |
| 31 V Inrush Current | 4.0 A |
| Weight | 10.00 lbs (4.54 kg) |
| UPC | 885630797854 |
