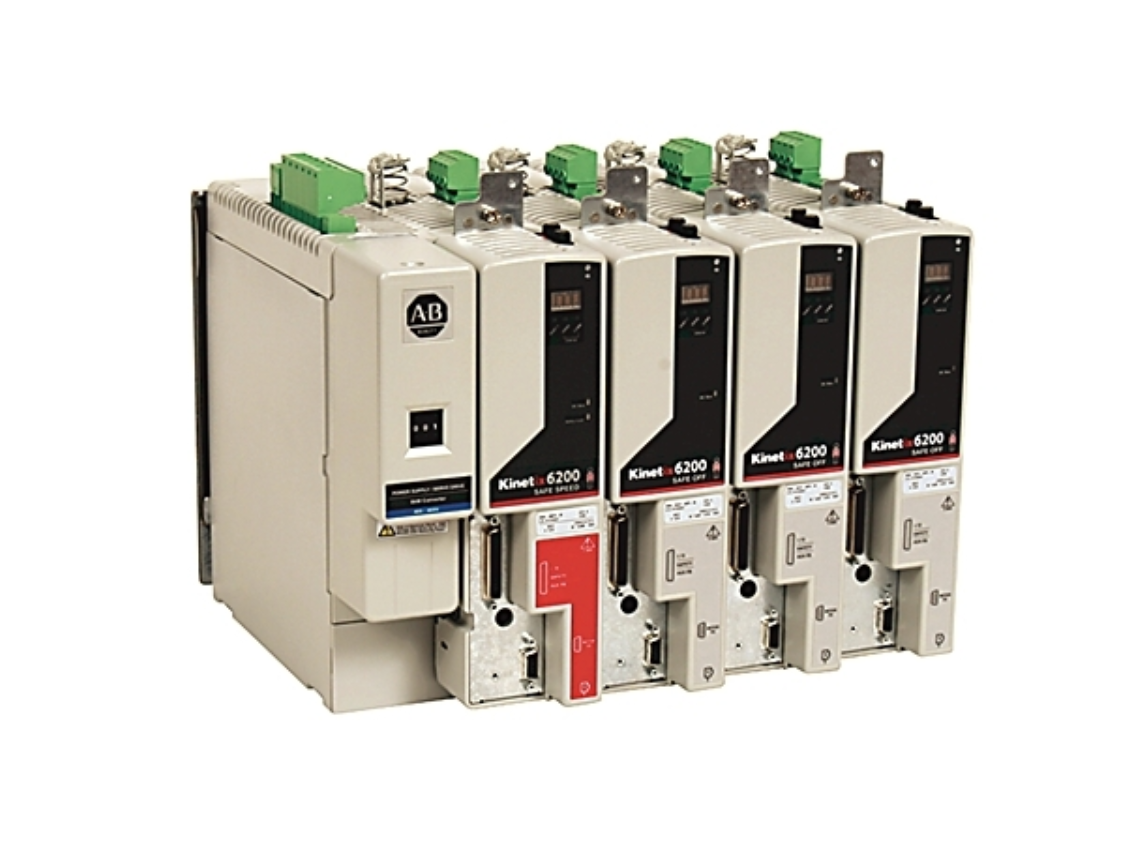

The Allen-Bradley 2094-BC04-M03-M Kinetix 6200 Axis Module is a high-performance multi-axis servo drive component engineered for demanding motion control applications. As part of the Kinetix 6200 / 6000 multi-axis drive family, this module delivers efficient power distribution, precise current control, and reliable DC bus management for integrated motion systems.

Designed to operate with a three-phase AC input voltage of 360–480V, the module provides a continuous output current of 30 A and supports a 460V AC rating, making it suitable for high-load industrial servo applications. It delivers continuous power output to the DC bus of up to 27.6 kW, ensuring stable energy transfer across connected axis modules.

The 2094-BC04-M03-M features an integrated axis power module, optimized for space-efficient installations. With a 98% efficiency rating, internal heat dissipation is minimized while maintaining reliable performance. The internal shunt system supports 200 W continuous power dissipation and handles peak regenerative energy effectively, protecting the DC bus during deceleration events.

Technical Details

Specification Details
Manufacturer Allen-Bradley
Category Servo Drives
Product Line Kinetix 6200
Part Number 2094-BC04-M03-M
Module Type Integrated Axis Module
Voltage Rating 460 V AC
AC Input Voltage 324–528 V rms, Three-Phase (360–480 V nominal)
Control Voltage 95–264 V rms, Single-Phase (110–240 V nominal)
Continuous Output Current 30 A
Continuous Output Current to Bus 41.5 A
Continuous Power Output to Bus 27.6 kW
Bus Overvoltage Threshold 825 V DC
Bus Undervoltage Threshold 275 V DC
Power Dissipation 94–255 W
Internal Shunt Power 200 W continuous
Maximum Bus Capacitance 8,955 µF
Operating Temperature 32 to 122 °F (0 to 50 °C)
Installation Clearance 50.8 mm (2.0 in)
Minimum Enclosure Depth 272 mm (10.7 in)
DC Bus Power Fuse Bussmann WJ-20A14F / Mersen DCT20-2 / HSJ20
Control Input Fuse FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A)
Control Input Breaker 1492-SPM2D060 or 1492-SPM1D150
Weight 22.00 lbs (9.98 kg)
UPC 884951147799
