1764-24AWA
Learn more
Original Packaging
Surplus stock in its original box. Units may have been briefly powered on for verification purposes only.
- No visible signs of wear, use, or physical damage.
- Arrives in the original manufacturer packaging — factory seal may be absent and outer box may show minor shelf wear or labeling.
- All standard hardware and accessories included unless otherwise noted.
- Documentation and instructions not guaranteed.
- Date codes or product series may differ from current factory inventory.
- Packaging language and country of origin may vary.
- Backed by Marci Hardware's 1-year warranty. Original manufacturer warranty does not apply.
Marci Hardware Packaging
Surplus stock repacked and shipped in Marci Hardware-branded packaging. Units may have been briefly powered on for verification purposes only.
- No visible signs of wear, use, or physical damage.
- Ships in Marci Hardware-branded or generic aftermarket packaging — original manufacturer box not included.
- Some accessories, hardware, or documentation included with factory-new units may not be present.
- Date codes or product series may differ from current factory inventory.
- Packaging language and country of origin may vary.
- Backed by Marci Hardware's 1-year warranty. Original manufacturer warranty does not apply.
Refurbished
Previously owned or unused units with minor cosmetic imperfections, restored to full working condition.
- May have prior production or field use.
- Each unit is inspected, tested, and cleaned by Marci Hardware before shipment.
- Some accessories, hardware, or documentation included with factory-new units may not be present.
- Backed by Marci Hardware's 1-year warranty. Original manufacturer warranty does not apply.
Overnight Shipping Available
Rush service is available during checkout, or contact us for expedited shipping options:
Phone Number: (832) 343-0718
Email: sales@marcihardware.com
Couldn't load pickup availability
Ships from Stafford, TX

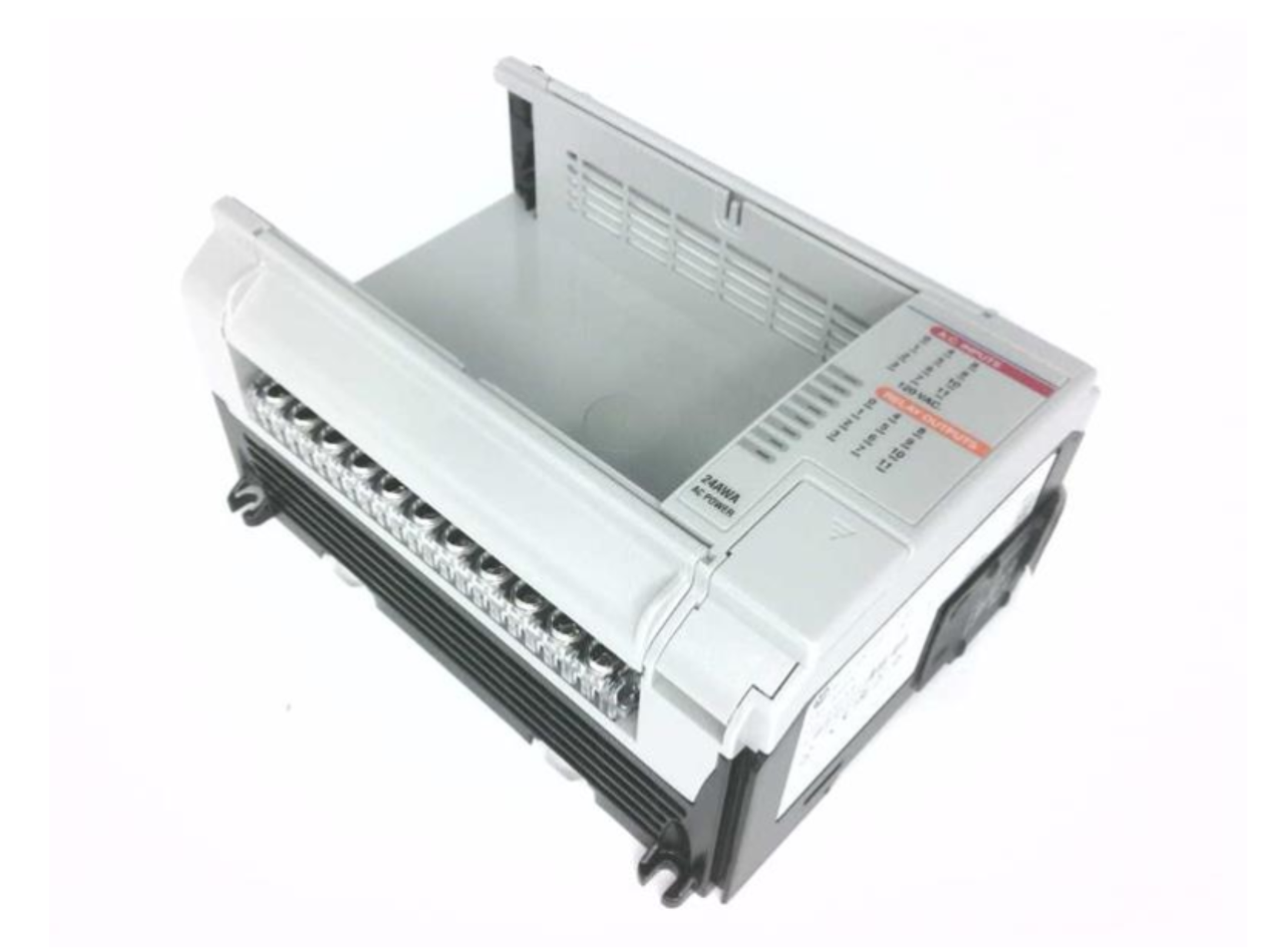

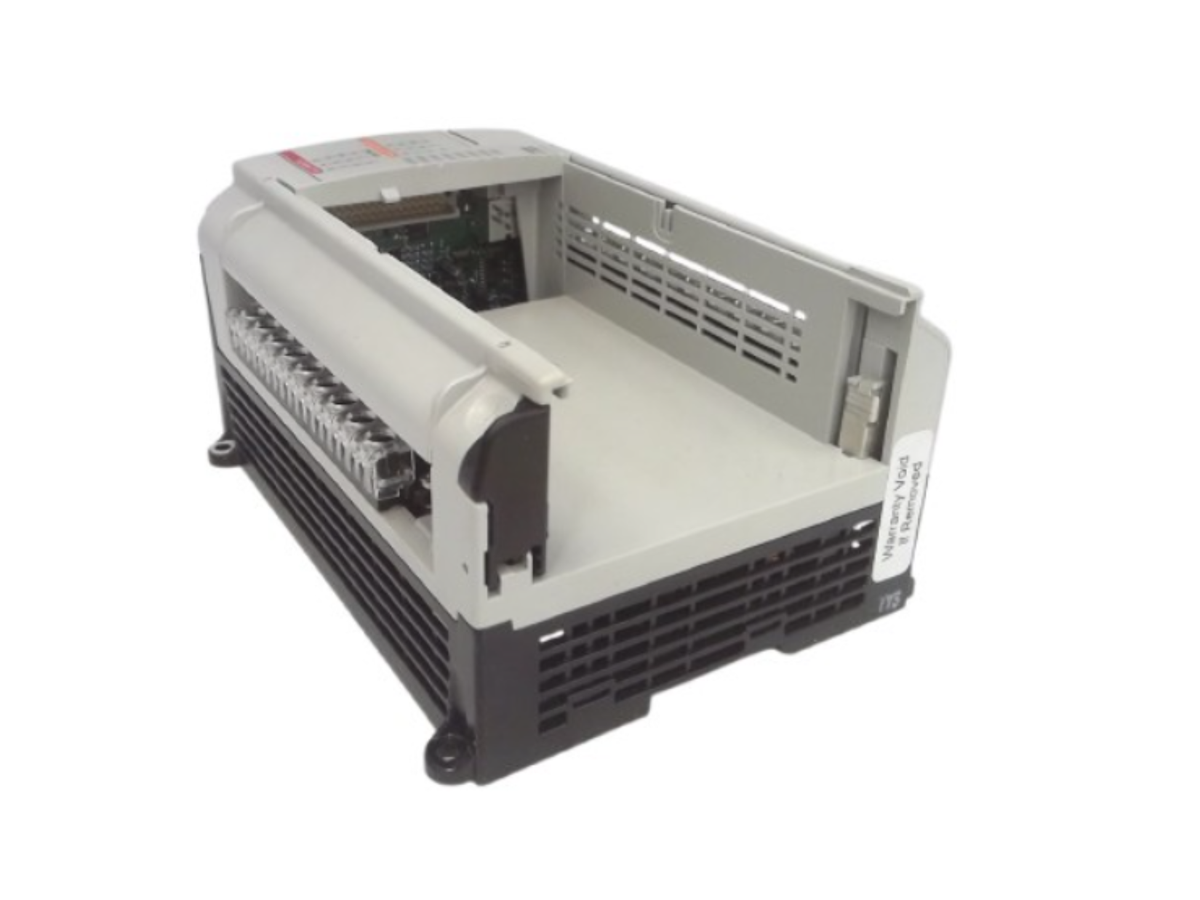

The Allen-Bradley 1764-24AWA MicroLogix 1500 Base Unit is a reliable PLC base module from the Bulletin 1764 MicroLogix 1500 family, designed for flexible control in small to mid-sized automation systems. This base unit integrates power, I/O, and communications in a compact form factor, making it ideal for panel-mounted applications.
Powered by a wide 85–265 VAC line supply, the 1764-24AWA includes 12 built-in 120 VAC discrete inputs and 12 relay outputs, providing versatile I/O handling for mixed-voltage field devices. Integrated RS-232 communication enables straightforward device connectivity for programming, diagnostics, and serial communications.
The base unit supports expansion up to 512 I/O points when paired with compatible MicroLogix 1500 processors (1764-LSP or 1764-LRP) and expansion modules, offering scalability as system requirements grow. With horizontal mounting and rugged construction, the 1764-24AWA is a dependable choice for machine control, process monitoring, and legacy system support.
Technical Details
| Specification | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Category | PLCs |
| Product Line | MicroLogix 1500 |
| Function | Base Unit |
| Part Number | 1764-24AWA |
| Power Supply Voltage | 85–265 VAC |
| Integrated Inputs | 12 × 120 VAC |
| Integrated Outputs | 12 × Relay Outputs |
| I/O Rating | 12 Inputs / 12 Outputs |
| Input Channel Voltage | 120 VAC |
| Output Channel Voltage | 24–125 VDC; 120–240 VAC |
| Output Type | Relay |
| Communication | RS-232 (Integrated) |
| Maximum Expanded I/O | Up to 512 points |
| Compatible Processors | 1764-LSP, 1764-LRP |
| Mounting | Horizontal |
| Weight | 1.69 lbs (0.77 kg) |
| UPC | 611320023602 |
| UNSPSC | 32151705 |
I will ship within one business day. International buyers are welcome. IF you want Expedited Shipping we can help you as well. We can ship under your (FedeX, UPS, DHL) Account if you have one. We Do Trade-Ins as well. Customer satisfaction is our priority. Call us 8323430718
1 Year Warranty ( Manufacturer warranty DO NOT apply )
